The Ultimate Guide to PEX-AL-PEX Pipe: The Multilayer Composite Piping Solution
In the world of modern plumbing, hydronic heating, and gas distribution, selecting the right piping material is crucial for system longevity, safety, and performance. While standard PEX (crosslinked polyethylene) has revolutionized the industry with its flexibility, a more advanced contender offers distinct advantages: the PEX-AL-PEX Pipe.

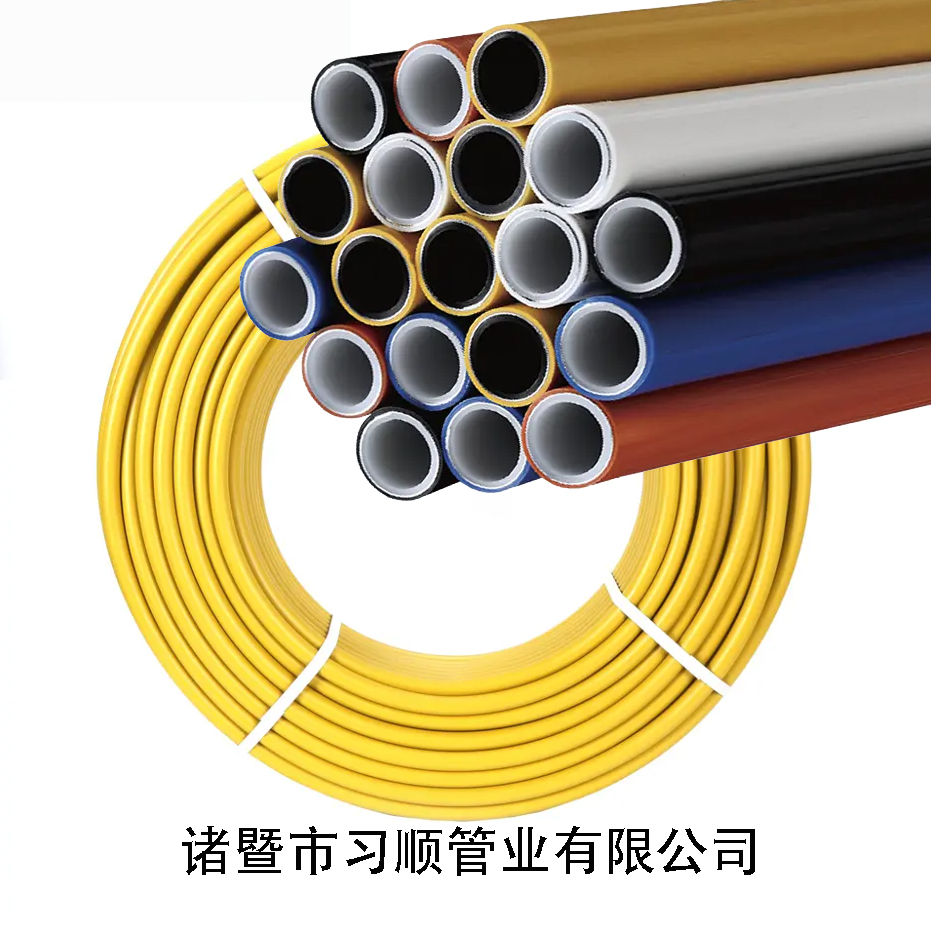

Often referred to as multilayer composite pipe or PEX-Aluminum-PEX, this product combines the best properties of plastics and metals. By sandwiching a welded aluminum tube between inner and outer layers of PEX, manufacturers have created a piping system that is flexible yet retains its shape, durable yet easy to install.
What is PEX-AL-PEX Pipe?
According to the Plastics Pipe Institute (PPI), PEX-AL-PEX piping is a coextruded crosslinked polyethylene composite pressure pipe featuring a welded aluminum tube reinforcement between the inner and outer layers. The inner and outer PEX layers are bonded to the aluminum core by a high-temperature melt adhesive, creating a five-layer structure:
Inner Layer: Crosslinked polyethylene (PEX) for smooth flow and corrosion resistance.
Adhesive Layer: Bonds the PEX to the aluminum.
Middle Layer: Welded aluminum tube providing structural strength and an oxygen barrier.
Adhesive Layer: Bonds the aluminum to the outer PEX.
Outer Layer: Crosslinked polyethylene (PEX) protecting the aluminum from external corrosion and mechanical damage.
This engineered structure is governed by strict standards. In North America, PEX-AL-PEX pressure pipe must meet the requirements of ASTM F1281, which specifies everything from material properties to burst pressure performance. Internationally, it often complies with EN ISO 21003 for hot and cold water installations inside buildings.
Key Advantages of PEX-AL-PEX Piping
Why choose PEX-AL-PEX over standard PEX or copper? The unique aluminum core provides several critical benefits:
1. Shape Retention (The “Bend-and-Stay” Factor)
Unlike standard PEX, which tends to spring back to its original coil shape (often referred to as “the spaghetti effect”), PEX-AL-PEX holds its shape after bending. This allows for neat, professional-looking installations. You can bend it by hand to navigate around obstacles without needing as many fittings, and it will stay exactly where you put it.
2. Superior Oxygen Barrier
One of the biggest threats to hydronic heating systems is oxygen permeation, which leads to corrosion of ferrous components like pumps, boilers, and radiators. The continuous aluminum layer in PEX-AL-PEX composite tubing acts as a 100% impermeable barrier to oxygen. While standard PEX relies on an EVOH coating that can be scratched or damaged, the aluminum core provides permanent protection.
3. Reduced Thermal Expansion
All materials expand when heated. However, standard PEX has a high coefficient of thermal expansion, which can lead to unsightly sagging or stress on connections. The aluminum core in a PEX-AL-PEX pipe dramatically reduces linear expansion, making the system more stable in hot water applications.
4. Reliability and Durability
PEX-AL-PEX systems are resistant to corrosion, tuberculation, and scale buildup. This ensures that flow rates remain high and water quality remains pristine over the decades-long lifespan of the system. It is tough enough to survive jobsite conditions yet lightweight enough to transport easily.
Common Applications
The versatility of PEX-AL-PEX makes it suitable for a wide range of residential and commercial applications:
Hot and Cold Water Plumbing: Certified for potable water distribution under ASTM F1281, it is safe for drinking water in homes and commercial buildings.
Radiant Heating and Cooling: Ideal for underfloor heating systems. The aluminum core ensures even heat distribution, and the oxygen barrier protects the entire hydronic system.
Hydronic Distribution: Used for connecting radiators, fan coils, and convectors in baseboard and radiator systems.
Snow and Ice Melting: Durable enough to be embedded in concrete or asphalt for driveway and walkway snow-melt systems.
Gas Piping: Specialized systems like Jones Stephens PEXALGAS® utilize PEX-AL-PEX for natural gas and propane distribution. The thicker pipe wall results in a blunter edge when cut, reducing the risk of lacerations to installers compared to traditional CSST.
How to Install PEX-AL-PEX: Connection Methods
Installing PEX-AL-PEX correctly is essential for a leak-free system. There are two primary connection methods:
1. Crimp Connection (Press Fittings)
This is the most common method. It uses a specialized PEX-AL-PEX pipe cutter and a calibrator/reamer. Because the pipe can deform when bent or cut, a reamer is necessary to return the pipe to a perfectly round shape and chamfer the edge before inserting the fitting. Once the fitting is inserted, a crimp ring is compressed using a crimp tool to create a permanent, leak-proof joint.
2. Compression Fittings
This method is often used for repairs or where a crimp tool is unavailable. It involves sliding a compression nut and a split O-ring onto the pipe, inserting the fitting body, and tightening the nut with wrenches. It is crucial to ream the pipe first to ensure the fitting inserts properly.
Note: Always ensure that the fittings used are specifically designed for PEX-AL-PEX pipe and are approved for your specific application (potable water vs. gas).
Standards and Specifications
When sourcing PEX-AL-PEX for your projects, always verify the following standards to ensure quality and code compliance:
ASTM F1281: The standard specification for Crosslinked Polyethylene/Aluminum/Crosslinked Polyethylene (PEX-AL-PEX) Pressure Pipe.
EN ISO 21003: Multilayer piping systems for hot and cold water installations inside buildings.
Pressure Ratings: Typically rated for 200 psi at 73°F (23°C) and 125 psi at 180°F (82°C).
Conclusion
PEX-AL-PEX Pipe represents a significant evolution in piping technology. By merging the flexibility and corrosion resistance of PEX with the rigidity and impermeability of aluminum, it offers a “best of both worlds” solution. Whether you are designing a complex hydronic heating system, installing potable water lines, or looking for a safer gas piping alternative, PEX-AL-PEX delivers performance, reliability, and ease of installation that traditional materials struggle to match.
