The Complete Visual Guide to HDPE Pipe Fittings: Names, Images, and PDF Resources
In the world of modern piping infrastructure, High-Density Polyethylene (HDPE) has emerged as the material of choice for water supply, gas distribution, sewage systems, and industrial applications. For engineers, contractors, and procurement professionals, having access to a comprehensive HDPE pipe fittings names and images PDF is essential for proper system design, specification, and installation.
This guide provides a detailed overview of HDPE fitting types, their functions, and the visual references available in technical manuals and catalogs.
What Are HDPE Pipe Fittings?

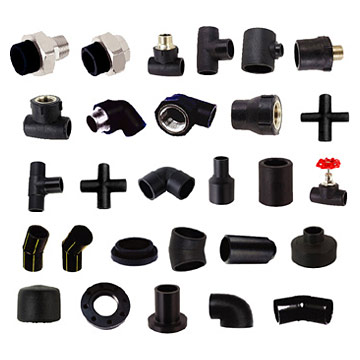

hdpe pipe fittings
HDPE pipe fittings are components manufactured from high-density polyethylene that connect, terminate, control flow, or change the direction of HDPE piping systems. These fittings are designed to create monolithic, leak-free joints through various fusion methods, ensuring system integrity over decades of service.
Professional HDPE fittings catalog PDF documents typically include dimensional data, pressure ratings, installation specifications, and detailed diagrams of each component.
Common HDPE Pipe Fittings Names with Descriptions
Understanding the correct names and functions of HDPE fittings is critical for accurate specification. Below is a comprehensive list of standard pipe fitting names and parts HDPE professionals encounter.
1. HDPE Sockets (Couplers)
Function: Join two HDPE pipes of the same diameter in a straight line.
Also known as couplers, these are the most fundamental fittings in any HDPE system. They feature a smooth inner bore designed for butt fusion or electrofusion welding, creating seamless connections for pipeline extensions and repairs. An HDPE socket fitting images PDF will typically show cross-sectional views illustrating the fusion depth and wall thickness.
2. HDPE Elbows (Bends)
Function: Change pipeline direction, typically at 45° or 90° angles.
HDPE elbows are essential for routing pipes around obstacles. Long-radius bends (Type B) minimize flow resistance and pressure drop, making them ideal for drainage and stormwater systems. Manufacturer manuals often include bend illustrations with dimensional tables for various diameters.
3. HDPE Tees (T-Fittings)
Function: Create a 90° branch connection from a main pipeline.
Available in equal configurations (all ports same size) or reducing configurations (branch smaller than run), tees enable distribution networks in irrigation and municipal water systems.
4. HDPE Reducers
Function: Connect pipes of different diameters.
Reducer sockets allow smooth transitions between pipe sizes, maintaining flow efficiency and reducing turbulence at diameter changes.
5. HDPE End Caps and Plugs
Function: Seal pipe ends permanently or temporarily.
HDPE end caps terminate pipelines for future expansion or system isolation. Professional HDPE fittings manual PDF documents show various cap designs, including split end caps with cable tie provisions and snap end caps for smaller diameters. HDPE end plugs provide internal sealing with rubber gaskets for positive shut-off .
6. HDPE Flange Adapters
Function: Connect HDPE pipes to valves, pumps, or metal equipment.
Flange adapters feature a stub end for fusion connection and a flange face for bolted assemblies. They enable integration with existing infrastructure and allow easy disassembly for maintenance. Sandwich flanges (20mm to 355mm) are manufactured by injection molding for potable water applications.
7. HDPE Electrofusion Fittings
Function: Join pipes using embedded electrical resistance coils.
This category includes electrofusion sockets, electrofusion elbows (90°/45°), electrofusion equal tees, electrofusion reducers, and electrofusion branch saddles. These fittings are essential for repairs or installations where butt fusion equipment cannot access both pipe ends.
8. HDPE Long Spigot Fittings
Function: Provide extended insertion lengths for socket fusion joints.
These include long spigot elbows, long spigot equal tees, long spigot reducers, and threaded adapters (both male and female) in PE/brass or all-HDPE configurations.
9. HDPE Butt-Weld Fittings
HDPE Butt-Weld Fittings
Function: Connect via direct fusion of pipe ends and fitting ends.
Common types include short radius 90° bends, elongated short radius bends, sweep 3D bends (90°/45°), butt-weld reducers, butt-weld stub flange adaptors, and butt-weld end caps.
10. HDPE Wyes and Crosses
Function: Create branch connections at angles or multiple intersections.
HDPE wyes (typically 45°) provide smoother flow for branch lines compared to tees, ideal for sewer applications. HDPE crosses allow four pipes to meet at a single point for complex distribution layouts.
11. HDPE Saddle Clamps and Branch Saddles
Function: Attach branch lines to existing main pipes without cutting.
HDPE saddle clamps provide secure, adjustable connections for tapping into pressurized mains. They feature corrosion-resistant materials and adjustable bolt mechanisms for varying pipe diameters (15mm to 50mm). Electrofusion branch saddles are fused directly to the pipe wall for permanent, leak-proof branches.
Specialized Fittings Mentioned in Technical Manuals
Comprehensive HDPE fittings catalog PDF resources from manufacturers like ADS Pipe list numerous specialized components:
Snap couplers and snap reducing couplers for quick assembly
Internal couplers and internal reducing couplers for confined spaces
Dual wall fabricated wyes, tees, and reducers for stormwater drainage
Injection molded fittings including tees, wyes, bends, and bell/spigot reducers
Soil tight end caps and downspout adapters for building connections
Manhole adapters and septic tank adapters for wastewater systems
Flared end sections for outlet protection
Backing rings (galvanised steel or stainless steel) for flange reinforcement
The Value of HDPE Fittings Manuals and PDF Catalogs
Professional HDPE pipe fittings names and images PDF documents serve multiple critical functions:
1. Visual Identification
Quality manuals provide detailed fitting illustrations with multiple views (side, top, end) showing key features. For example, dual wall fabricated bends manuals include illustrations of plain ends and gasketed ends with dimensional callouts.
2. Dimensional Reference
Comprehensive tables list part numbers, pipe sizes, and critical dimensions (A, B, C measurements) to ensure proper fit and compatibility.
3. Installation Guidance
Many manuals include instructions for proper assembly, including fusion parameters, alignment requirements, and torque specifications for mechanical connections.
4. Standards Compliance
Professional catalogs reference applicable standards such as ASTM, ISO 4427, EN 12201, and AWWA M55, ensuring materials meet regulatory requirements.
Material and Performance Specifications
When referencing HDPE fitting catalog PDF documents, pay attention to these specifications:
Material Grade: PE80 or PE100 (higher density for greater pressure capacity)
Pressure Ratings: PN4, PN10, PN16, PN20 (bars) indicating maximum working pressure
SDR Ratings: Standard Dimension Ratio relating wall thickness to diameter
Temperature Range: Typically -40°C to +60°C for standard applications
Different pipe fitting names and parts HDPE correspond to specific applications:
Fitting Type
Primary Applications
Typical Industries
Sockets/Couplers
Straight pipe extensions, repairs
Water mains, irrigation
Elbows/Bends
Direction changes, obstacle avoidance
Drainage, stormwater, sewer
Tees
Branch connections, distribution networks
Municipal water, fire protection
Reducers
Diameter transitions
Pump stations, chemical processing
End Caps
Line termination, future connections
Construction staging, testing
Flange Adapters
Equipment connections, valve integration
Treatment plants, industrial
Saddle Clamps
Tapping mains, branch additions
Irrigation, HVAC, water treatment
Electrofusion Fittings
Repairs, confined spaces
Gas distribution, water repairs
Electrofusion Fittings
How to Use HDPE Fittings PDF Resources Effectively
For maximum benefit from HDPE pipe fittings names and images PDF documents:
Verify Current Versions: Check publication dates and revision levels
Confirm Standards: Ensure fittings meet local code requirements (NSF/ANSI 61 for potable water, etc.)
Check Dimensional Accuracy: Use tables to confirm compatibility with existing pipes
Review Installation Details: Follow fusion parameters and torque specifications precisely
Consider Application Environment: Match material grade and pressure rating to actual service conditions
Conclusion
Having access to a comprehensive HDPE pipe fittings names and images PDF is indispensable for anyone involved in pipeline design, procurement, or installation. From basic HDPE sockets and elbows to specialized electrofusion fittings and saddle clamps, each component serves a specific function in creating reliable, durable piping systems.
Professional catalogs from manufacturers and standards organizations like AWWA (M55-2020) provide the detailed visual references and dimensional data needed to specify components correctly. By understanding the complete range of pipe fitting names and parts HDPE, engineers and contractors can ensure system integrity, optimize flow performance, and achieve long-term reliability in municipal, industrial, and agricultural applications.
Whether you need HDPE end cap specifications, bend illustrations with dimensions, or saddle clamp installation details, quality PDF resources remain essential tools for the piping professional.
