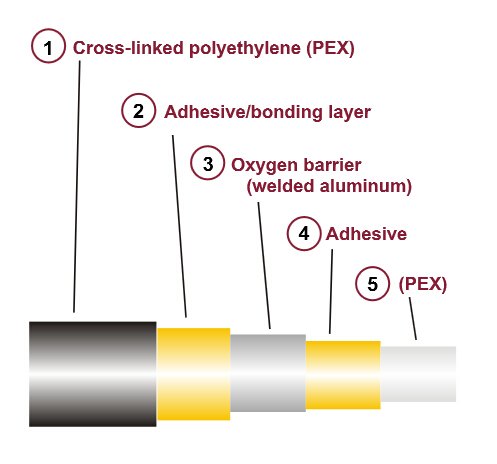

PEX-AL-PEX pipe

Characteristics of PEX-AL-PEX pipes

1. Reduced thermal expansion
2. For other special request, we can customize it for our clients according to customers’ demand.
3. Health, non-toxic, can be used for pure water, drinking water pipeline system, the product is a green building materials.
4. Due to the existence of the middle layer of aluminum, the expansion co-efficient a samll metal pipe with considerable strength, toughness, impact resistance.
5. Corrosion-resisitant, non-scaling;may be waived and basin was blocked pipes, the tub-shaped macular rust.
6. High temperature, high pressure, in the long-term work requirements under the pressure of piped water temperature can reach 95°C.
7. Energy-saving insulation: thermal conductivity of metal pipes1/200 only, hot water pipe insulation for excellent energy saving effect.
8. Light weight, high strength: the proportion of the only one-eighth of the metal.
9. Pleasing in appearance: both the inner and outer side of our products are very smooth, flowing water with small force, soft color, and beautiful graphics.
10. Can be buried, metal detectors can be used to detect the location of the tube.
11. Convenient and reliable installation: the use of the hot melt connection, no need to set silk, and it will just take a few seconds to complete a joint connections,and metal water pipes and connected to the use of high-quality copper insert, safe and reliable.
12. Long time life: the pipeing system under normal use life of up to 50 years.



Application Fields of PEX-AL-PEX pipe

1. Hot water and cold water pipe for production and domestic use;
2. Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3. Pipe used for solar energy water heater;
4. Coal gas and natural gas pipe;
5. Drinking water within a certain district, pipe used for reclaimed water project;
6. Piped used for central air conditioner, fan coil;
7. Industrial pipes used for oil transportation and cooling fluid;
8. Pipes used for sleeve of wire or cable;
9. Pipe/tube used for oxygen input in hospital;
10. Pipes used for irrigation project in agriculture or garden;
11. Pipes used for gas suction under condition of vacuum;
12. Tubes used in beverage factory for edible fluid

Product Parameters

Thermal conductivity           0.45W/m.k
Thermal Expansivity           2.5 x 10-5 m/m.k
Bend Radius           ≥ 5D (D: Tube Diameter)
Operating Temp Range           -40 – +95°c
Working Pressure           ≤ 1.25Mpa
Radial Force Penstock            2400 – 3320N
Bursting Strength            5.5 – 8Mpa
